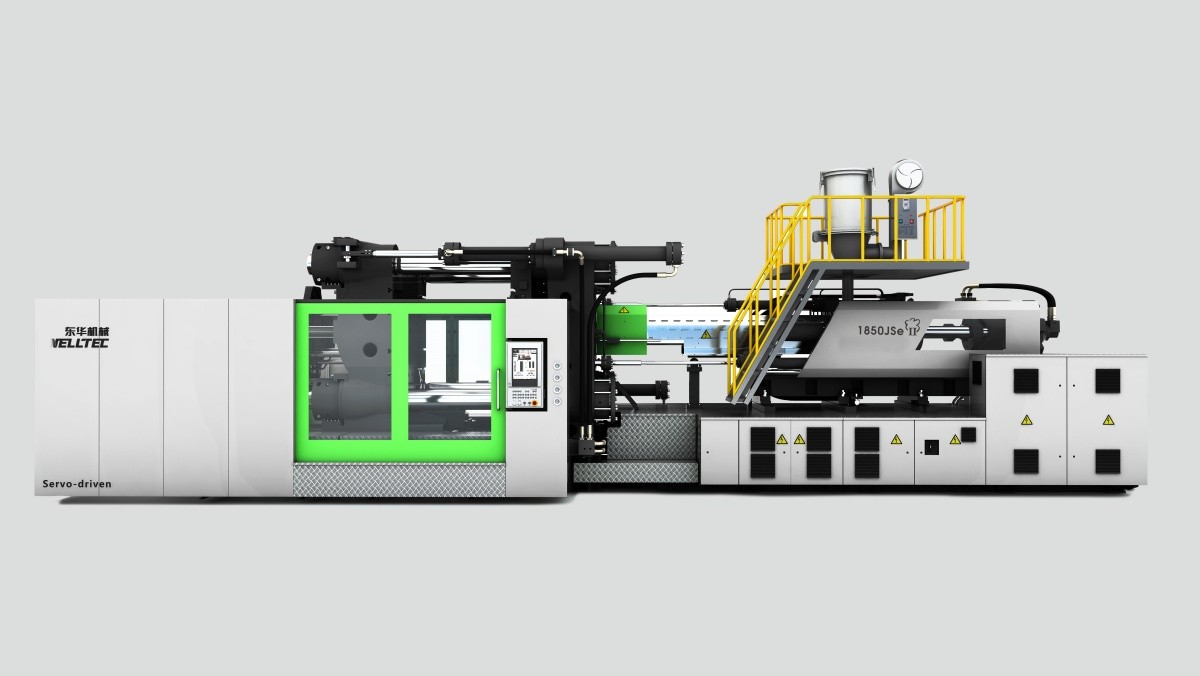

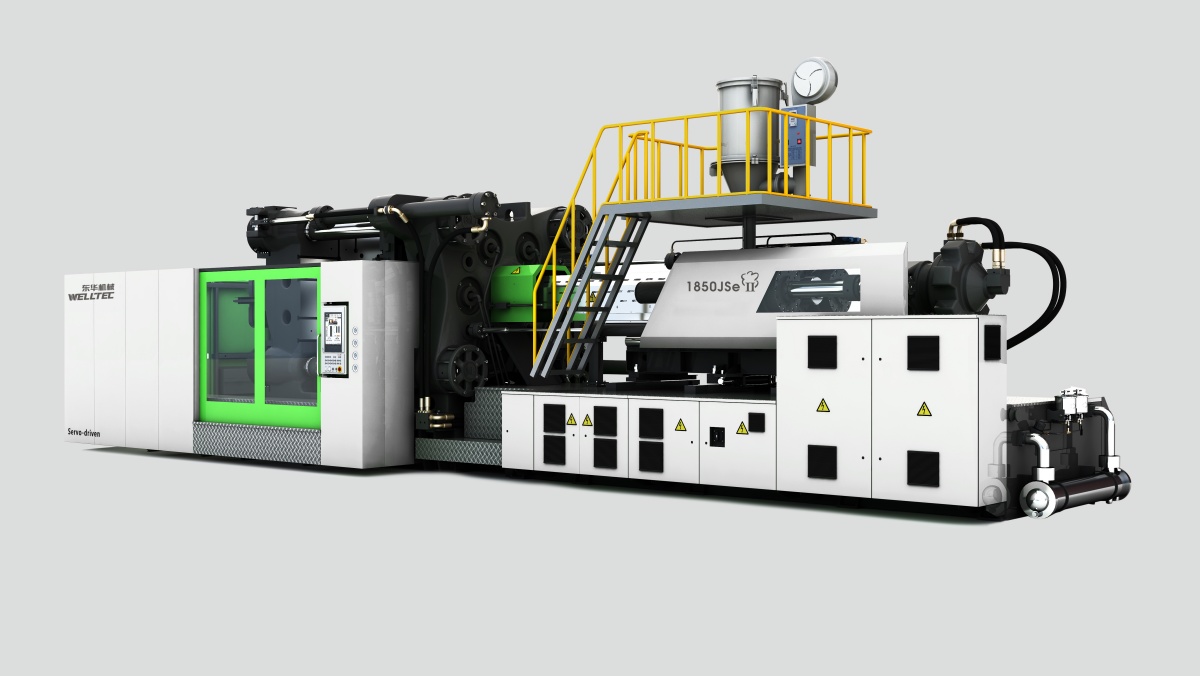

大型两板式注塑机

    新型射台结构

    结构紧凑、刚性好的新型射台结构

    射台模块化设计,大小射台更换方便

    双缸射移+料筒支撑,料筒防悬垂调节组件,调节简单



新型射台结构

State-of-art injection unit designs


● 结构紧凑、刚性好的新型射台结构

● 射台模块化设计,大小射台更换方便,满足不同产品成型需求,缩短交货期

● 双缸射移+料筒支撑,料筒防悬垂调节组件,调节简单,射台运行稳定,计量准确,便于精密成型;高强度导轨架,射台变形小,射台旋转更换螺杆


Compact structure and high-rigidity injection unit

Modular designs to allow mix-and-match with unparalaled flexblity between injection and clamping units for catering wide range of injection shot weights and moulding needs.Short machin eproduction lead time is realised.

Double cyinder injection carriage and barrel support to avoid vertical posilional shifts and enable easy adjustments.

Stable injection unit movements and accurate volumetric injoction controls to make sure the parts are pracisely moulded.High-strength guide rail to reduce delomation of the injection unit.Maintenance work at the screw and barrel is soviceman-fiendly due t othe swiveling injection design.








高响应油路控制阀

High-response proportional valve


● 液压系统使用高响应的比例阀,提高开合模精度和稳定性,刹车响应时间缩短


The hydraulic system uses a high-response proportional valve to improve the accuracy and stability of mould open/close.This also shortens the brake response time.





六油缸均布直压锁模结构

six cylinders direct clamping structure

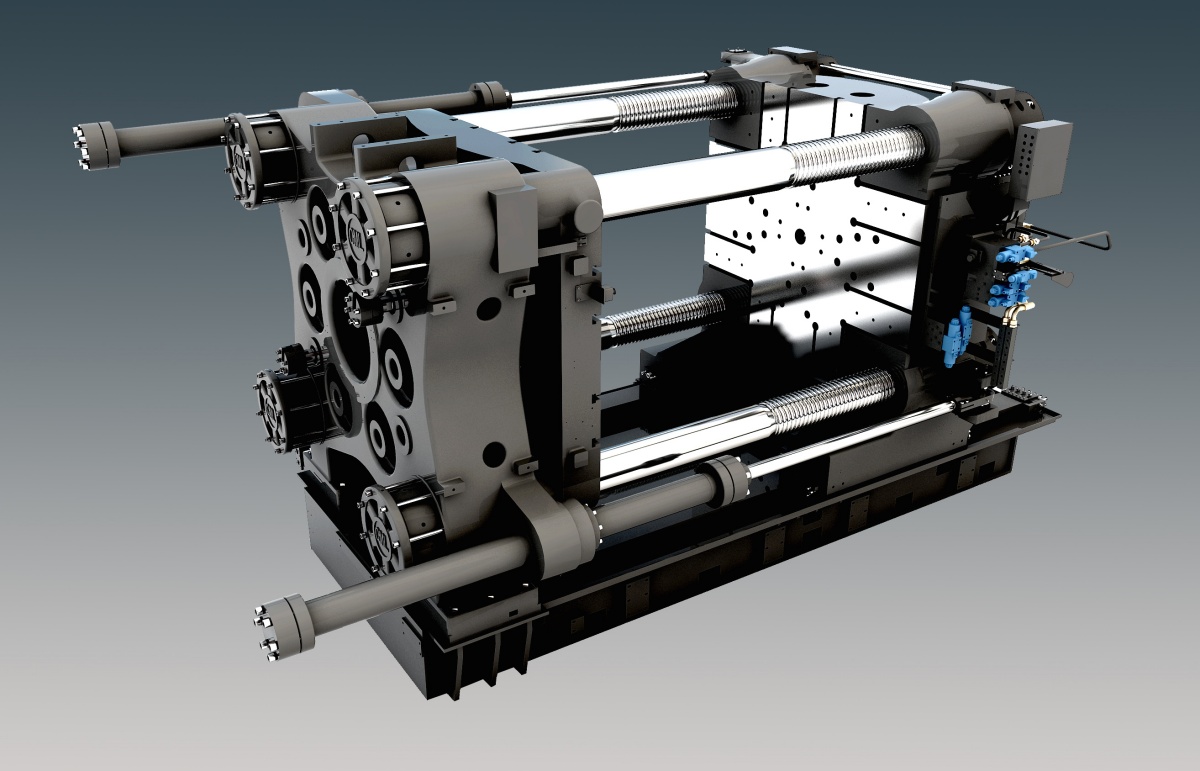

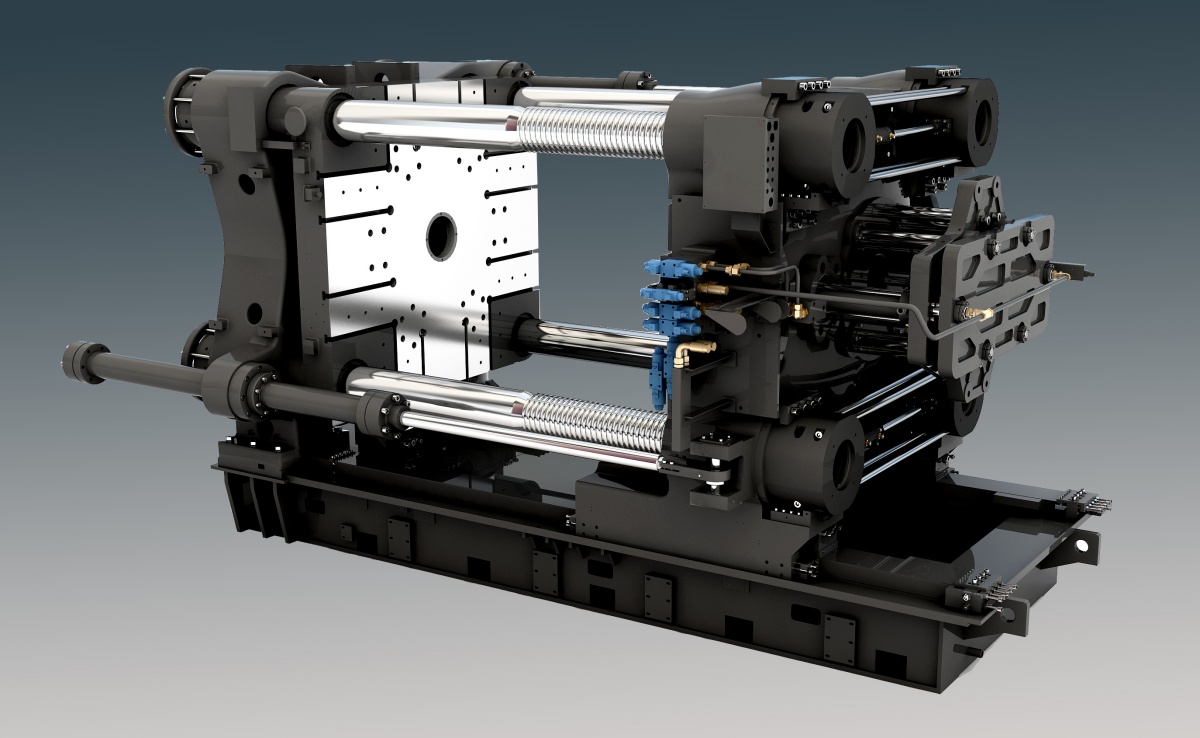

● 合模动作及高压锁模由两组机械结构完成,稳定性更高。高压油缸呈环形分布,直接作用于模具安装面上,有效减少模具变形,更好地保护模具,更加有利于制品成型的质量


Mould open/close and high pressure clamping are done by two groups of mechanical structures.Machine motion stability is greatly enhanced.Six cylinders aligned hexagonally behind the moving platen act directly on the mould mounting surface, which contributes to less mould deformation and better mould protections,thus minimizing product defective rates.





超短成型周期

Super-short cycle time

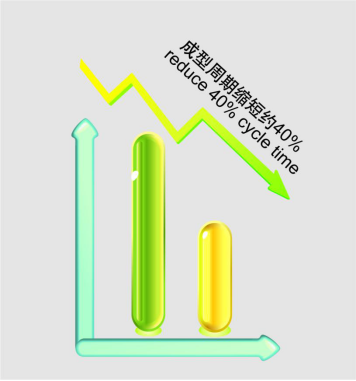

● 锁模干周期较传统机型缩短40%


Comparing to traditional toggle machine models,the dry cycle time is shortened by 40%







锁模力准确、稳定

High precision and stable clamping force

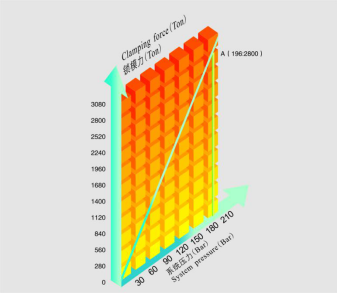

● 两板机的锁模力准确、稳定、与系统压力成正比,线性好,有利于保护模具,制品重复精度高


High precision clamping force stability,repeatability,excellent-tuned linearity curve against the system pressure,these results in strengthening mould protection and minimizing product weight variations
